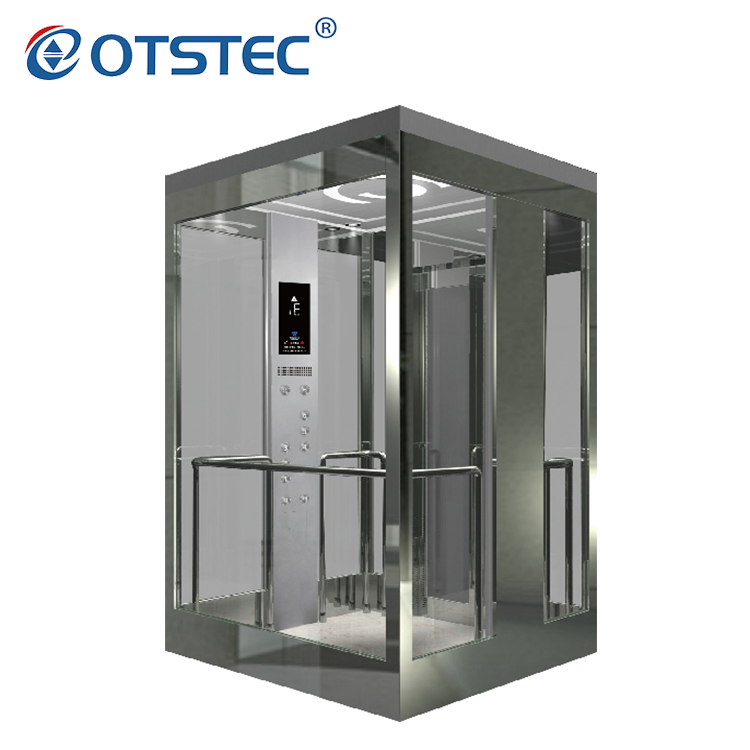

Elevator Safety Lift Panoramic Glass Large Capacity Titanium Stainless Steel Passenger Elevator

Car cover: Painted steel plate plus color decoration patterns
Observation; 3 PCS of safety laminated glass
Decoration roof: Middle with white roof lamp around stainless steel floor with tube lamp for soft illumination design
Car wall: Hairline, etched
Handrail: Stainless steel tube
Floor: PVC/Marble
Availability:
Quantity:

Elevator Safety Lift Panoramic Glass Large Capacity Titanium Stainless Steel Passenger Elevator

69202137

Product description:

Car cover: Painted steel plate plus color decoration patterns
Observation; 3 PCS of safety laminated glass  and golden frame

Decoration roof: Middle with white roof lamp around stainless steel floor with tube lamp for soft illumination design

Car wall: Hairline, etched
Handrail: Stainless steel tube
Floor: PVC/Marble

Elevator Function:

1. VVVF drive Motor rotating speed can be precisely adjusted to get smooth speed curve in elevator's start, travel  and stop and gain sound comfort.

2. VVVF door operator Motor rotating speed can be precisely adjusted to get the more gentle and sensitive dppr machine start/stop

3. Independent Running The elevator can not respond to outer calling, but only respond to the command inside the car through the action switch.

4. Automatic passes without stopping. When the car is crowded with passengers or the load closed to preset value, the car will automatically pass the calling landing in order to keep maximum travel efficiency.

5. Auto adjust door opening time Door-open time can be automatically adjusted according to the difference between landing calling or car calling.

6. Reopen with hall call In the door closing process, press reopen with hall call button can restart the door

7. Express door closing When the elevator stops and opens the door, press the door-close button, the door will be closed immediately.

8. Car stops and doors open. The elevator decelerates and levels, the door only opens after the elevator comes to a complete stop.

9. Car arrival gong Arrival gong in the car top announces that the passengers arrive.

10. Command register cancel If you press the wrong floor command button in the car, twice continuous pressing of the same button can cancel the register commend.

11. Direct parking. It completely accords with distance principle with no crawling in the leveling.It greatly enhances travel efficiency.

ys7

Optional Function:

1. Leveling when power failure In the normal power failure, the chargeable battery supplies the elevator power.The elevator drives to the nearest landing.

2. Bell In emergency conditions, if the bell button above the car operation panel is continuously pressed, the electric bell rings on the top of the car.

3. Anti-nuisance In the light duty load, when three more commands appear, in order to avoid unnecessary parking.All the registered calls in the car will be canceled.

4. Open the door in advance When the elevator decelerates and enters the door open zone, it automatically opens the door to enhance the travel efficiency.

5. On-duty peak service Within the preset off-duty period, the elevators are continuously closed to the top floor in order to satisfy off-duty peak service.

6. Door open time extending Press special button in the car, the elevator door keeps open for a certain period of time.

7. Door-opening re-leveling When the elevator door opens and leveling fluctuation occurs due to change of the car load, the system automatically runs the elevator to level position by its own leveling speed under the conditions of door-opening.

8. Voice Announcer When the elevator normally arrives, voice announcer informs the passengers about the relevant information.

9. Operation box for the disabled. It is convenient for wheelchair passengers and those who have visual disorders.

10. IC card control function All (Partial) landings can only input car commands though LC card after the authorization.

11. Camera function in the car. The camera is installed in the cabin to monitor the carbin conditions.

ys8



%P`3)W(M6HFGMHBFBAN(9

ys2

ys



6DQ6JOV5M_KU5NY(875D


H80cf0c0d92b94690bb9b67ca51b3691bGH5590d4692aa04e8083300ddf93a8189a1H5d4c235d60514c3aa99c3b9bc15c02035H350d6a7b921c40b2ae82bd30856af52fQ
